ST-CP HD Concrete paver
ST-CP SERIES

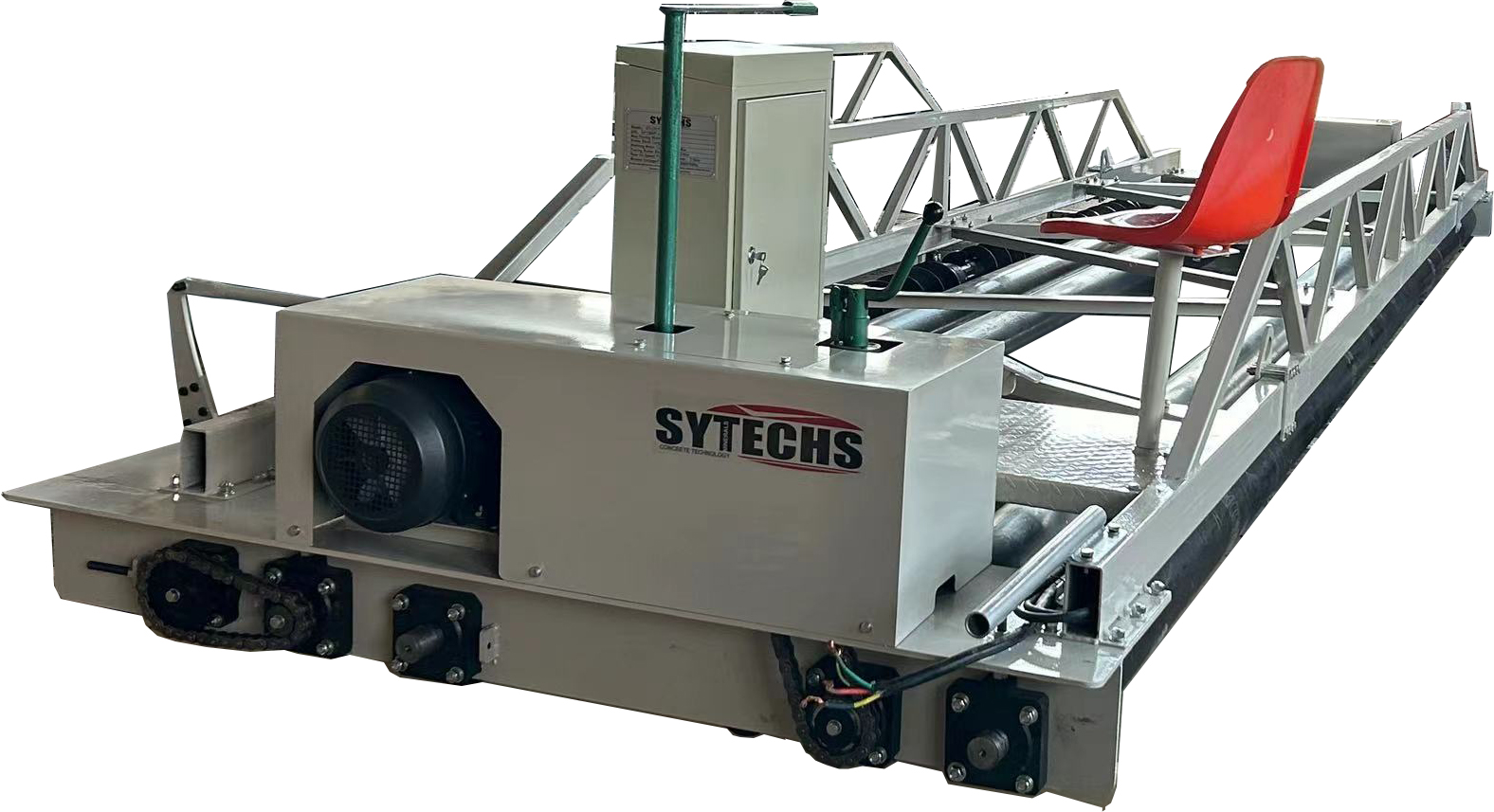

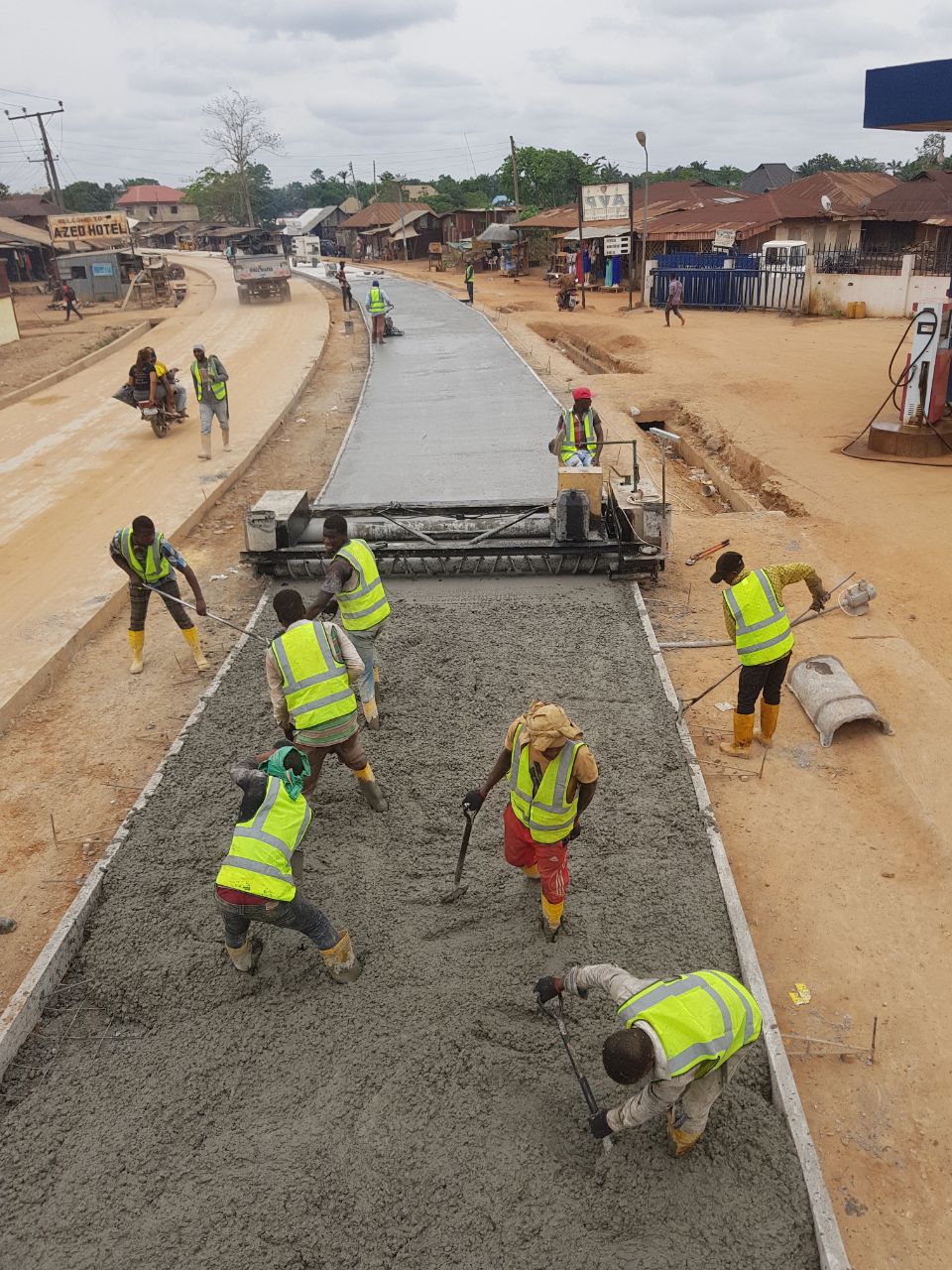

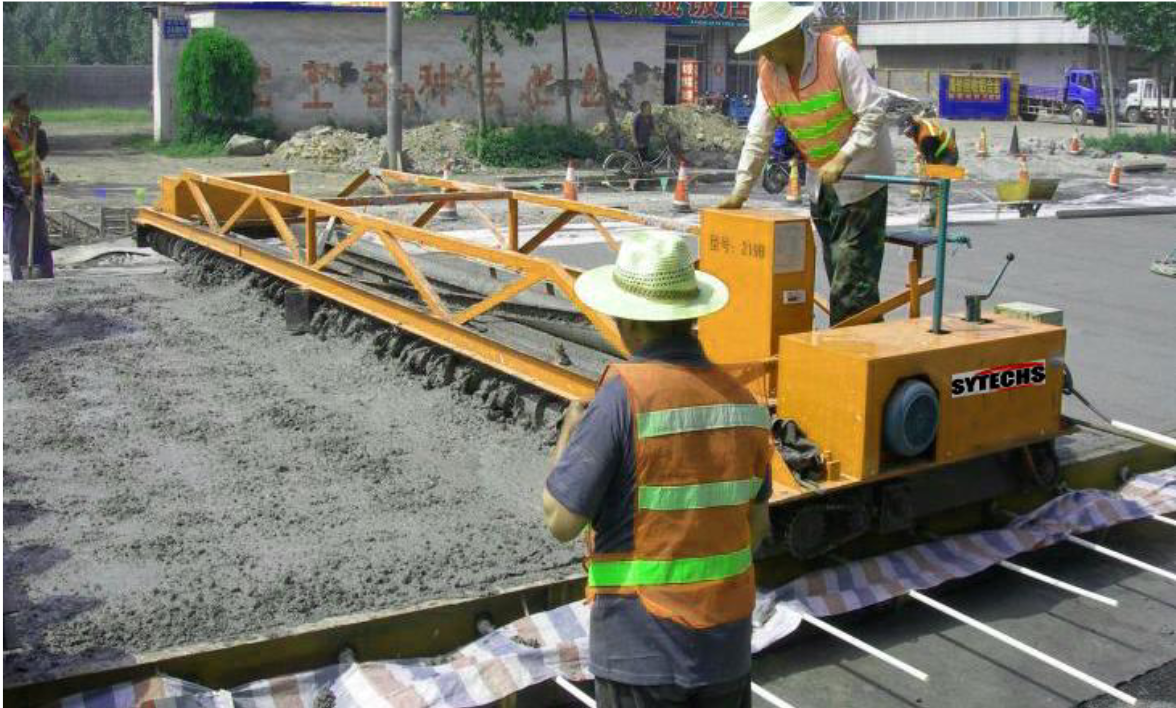

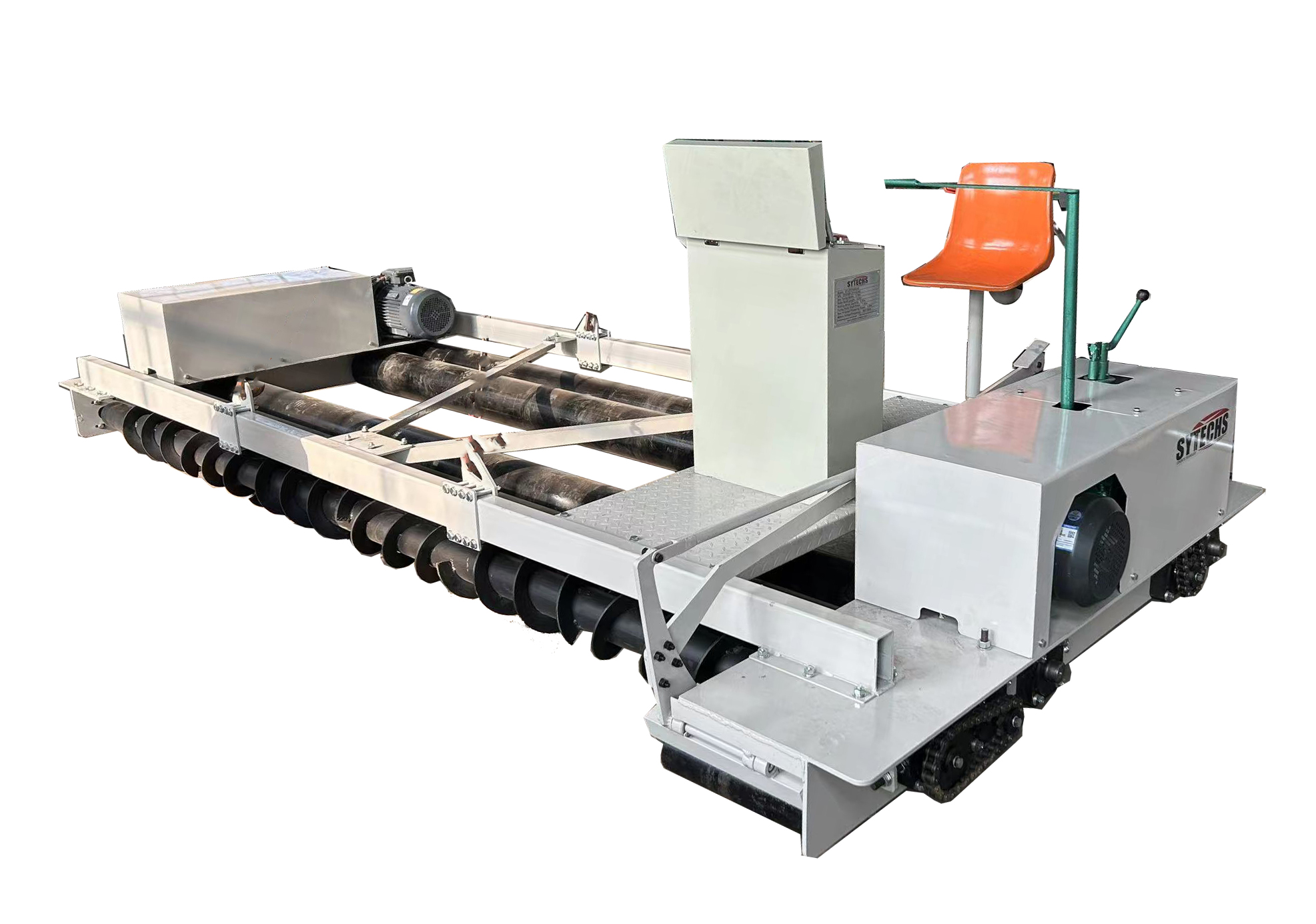

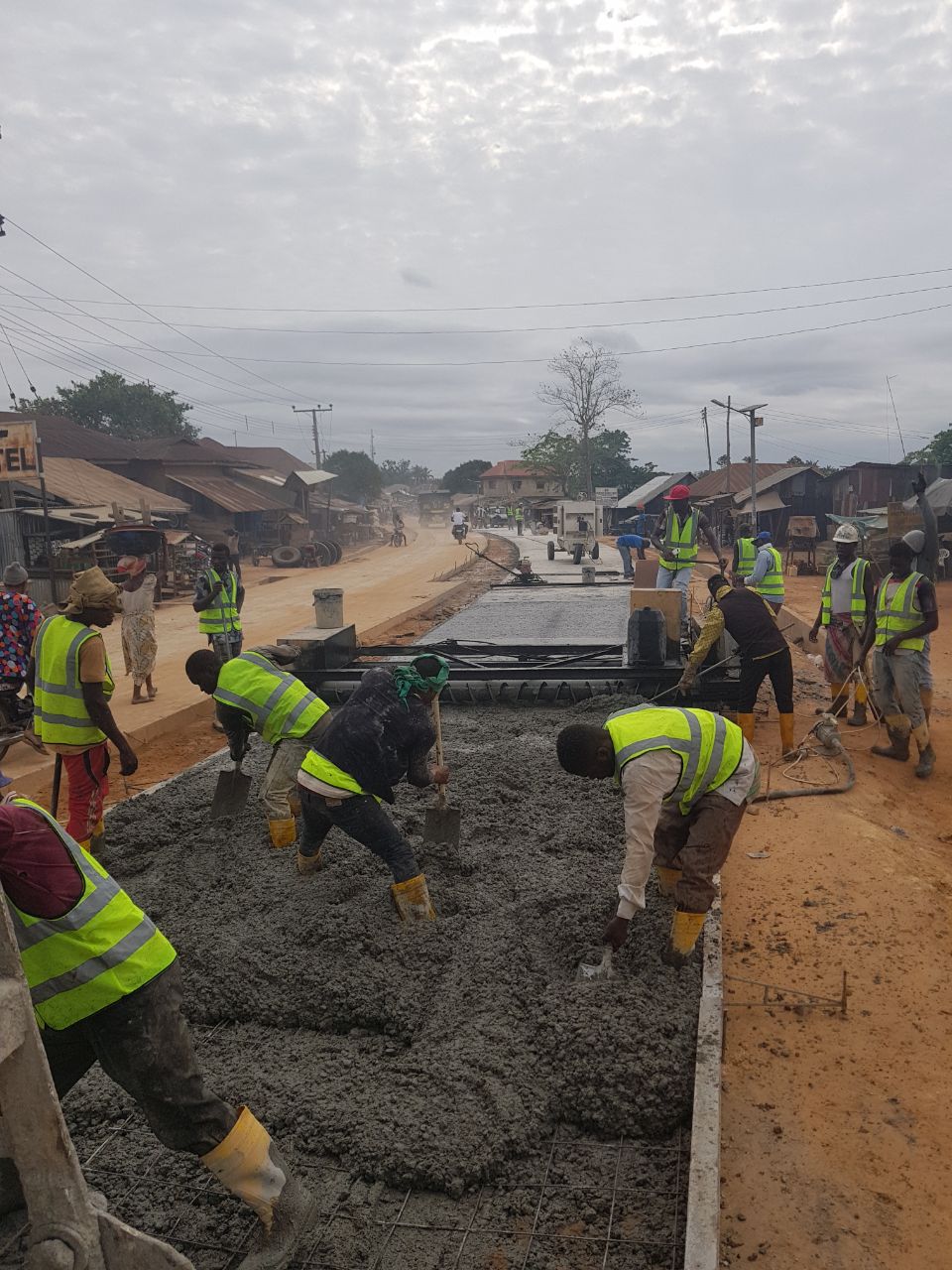

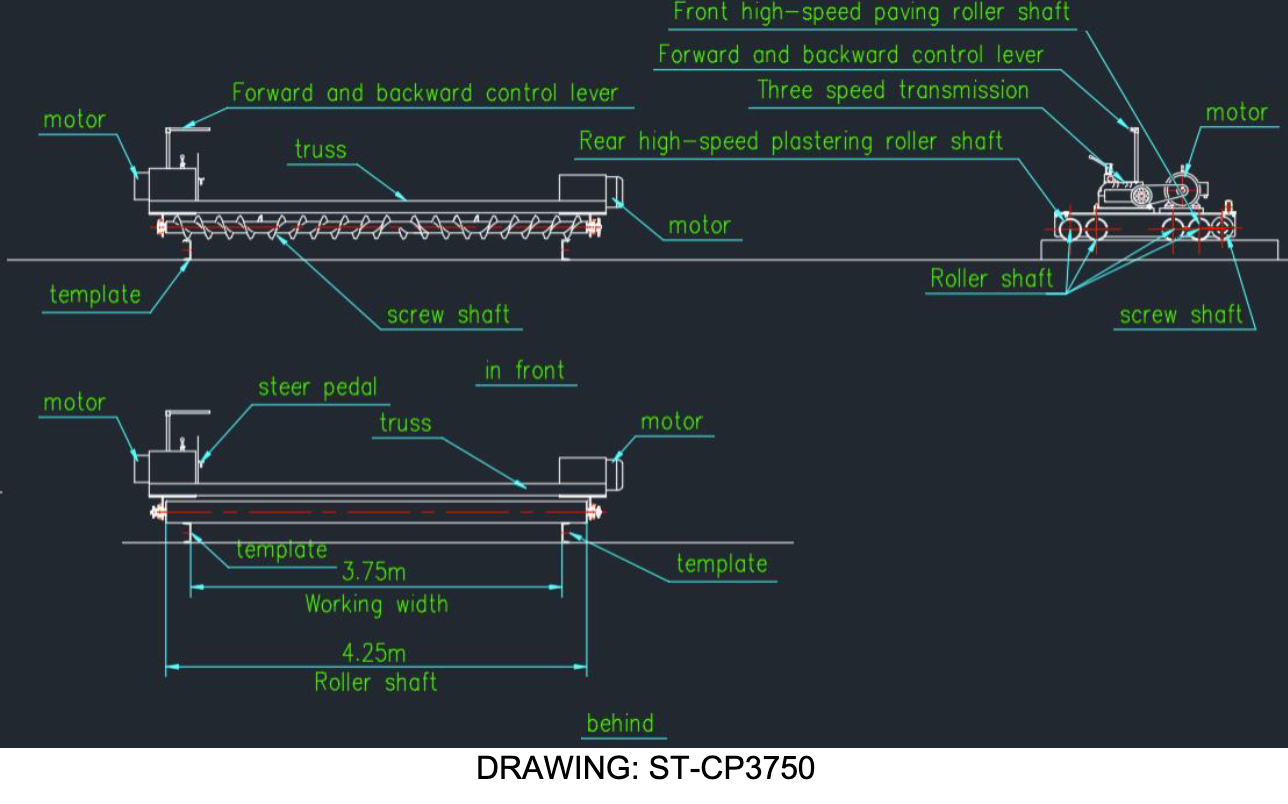

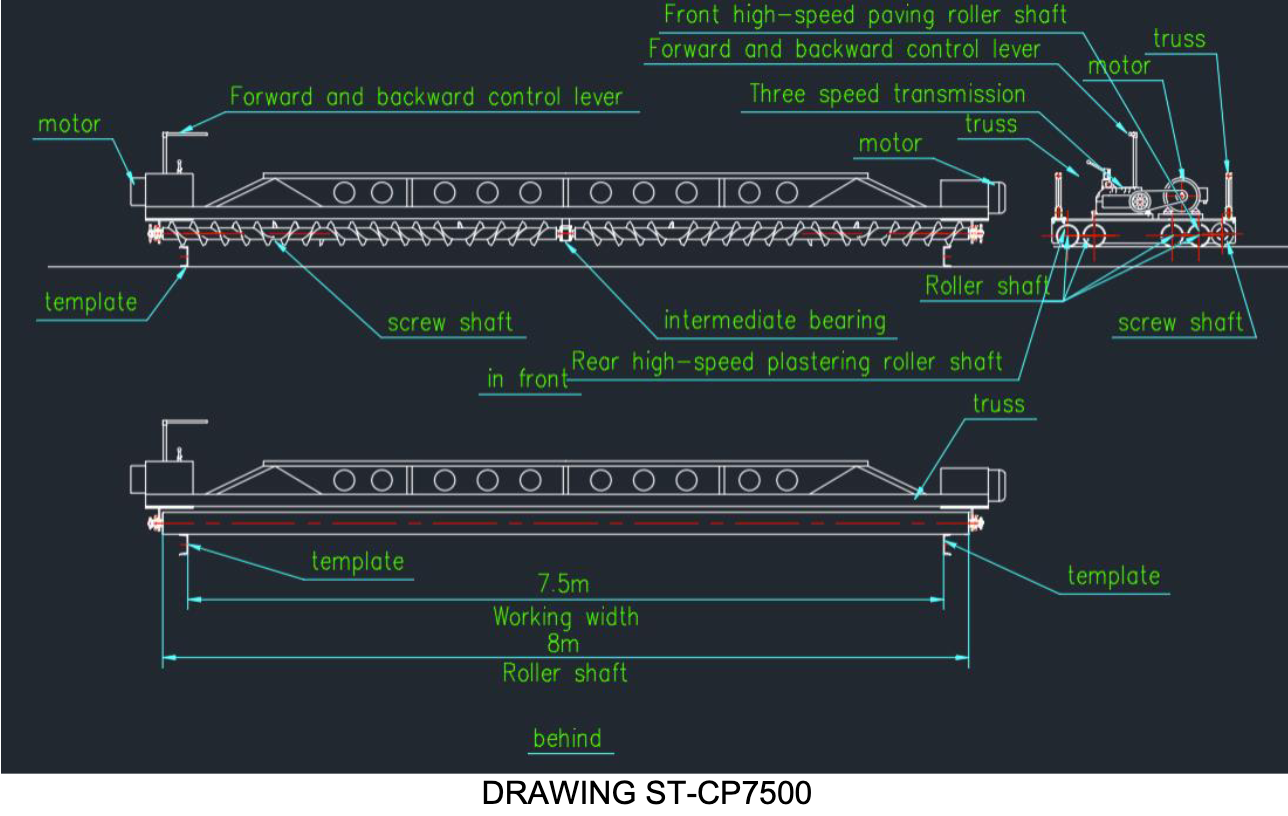

The Sytechs Concrete Paver is designed specifically for concrete pavement from 5 to 50 cm thickness. The paver has a standard compaction and spreading with of 3.75m & 7.5m.The paver rolls on U channels, which height determines the thickness of the rigid pavement. Concrete should be poured in front of the paver and across the width between the U channels.
The distance between the U channels can vary depending the required width of the pavement but not exceeding the max width of the rollers The Sytechs paver can be powered by an electric motor through a gearbox for better traction. A Diesel engine (Optional) can be incorporated as well depending on customer’s requirement.

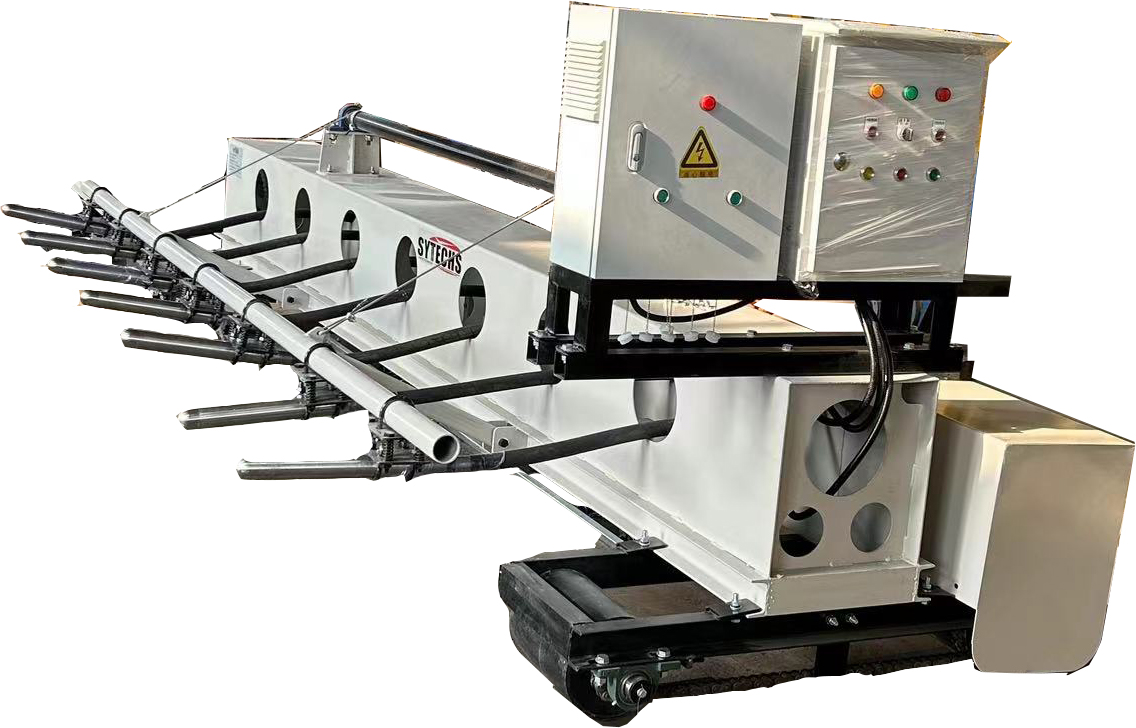

The paver can be equipped with mechanical concrete vibrators, High speed plastening roller (optional).

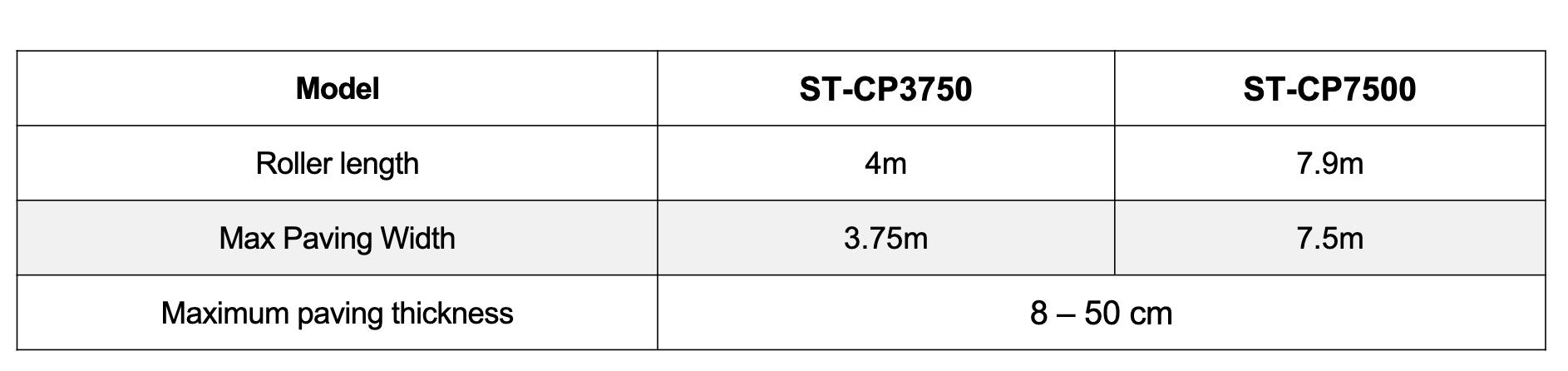

Technical Specification:

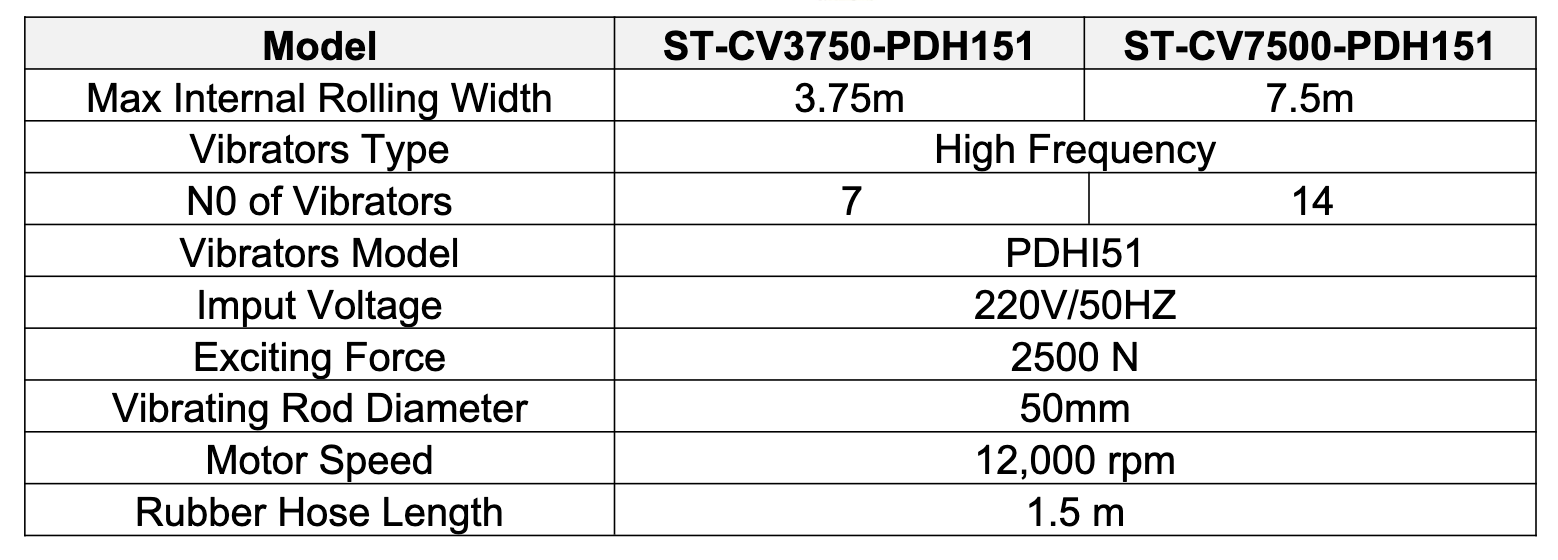

Technical Specification:
