Pan Feeders

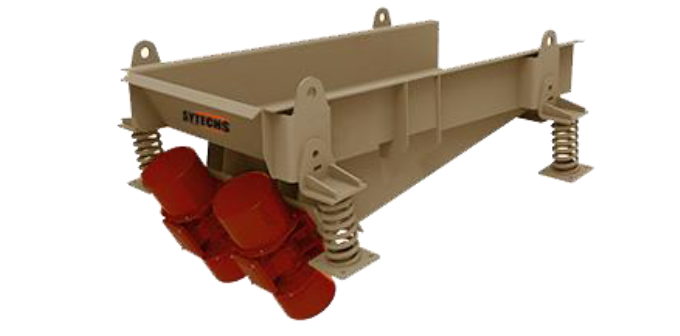

The Sytechs ST_PF Series Pan Feeders are designed to work in tough conditions and to withstand heavy impacts and loads. The integration of Double High efficiency Electric Vibrators, Variable speed control in addition to the simple and compact structure result in high conveying capacity, reliability in operation and easy maintenance.
The ST-PF Series Pam Feeders can be used to evenly and continuously feed small and medium-sized block, grain and powder materials from the storage bin to the receiving device.
Features:
● Designed to withstand heavy impact and load.
● Variable Speed Drive (VSD).
- Allows the operator to regulate the feeding speed evenly which maximizes the efficiency of the primary crusher.
- Protects the electric motor from high inrush current/ high temperature (Soft start) in case of frequent start /stop
- Less power surge on your power source.
- Adjustable vibration force, changeable and controllable flow anytime when required
- Low power consumption rate
● Rubber or Spring suspension: Smoother shut down of the unit, safety (fingers), reduced noise, and better isolation ratio.
● Suspension or Seat type installation is adopted.
Guaranteed performance when original Symonstechnology (Sytechs) parts are used, a long lifetime of the cone crusher is guaranteed
Feed Size: 0-500mm
Capacity Range : 180 - 850 TPH
Materials: Granite, marble, basalt, limestone, quartzite, pebble, copper ore, iron ore, coal, etc.

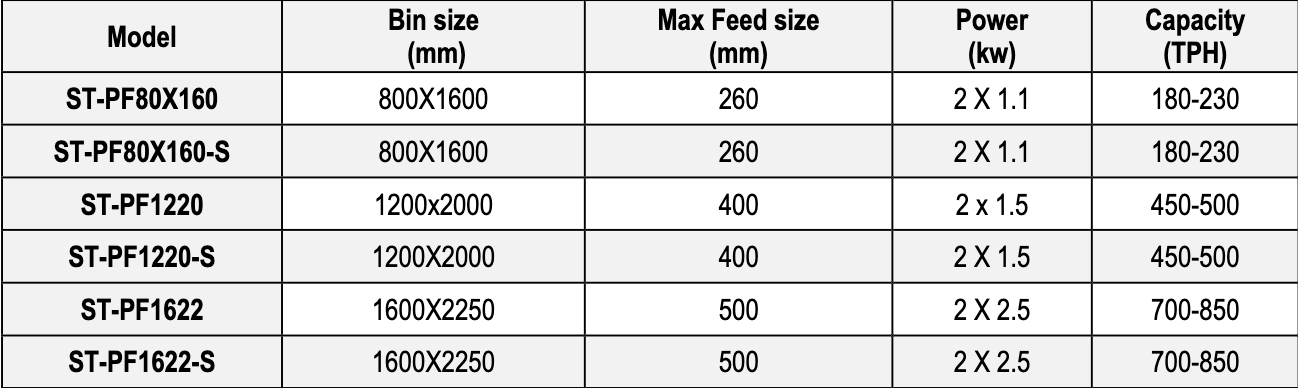

Technical Specification:
For more technical details, please download the brochure
