C SERIES JAW CRUSHER
The Sytechs ST-C Series Jaw Crushers are ideally suitable for primary and secondary crushing, with low power consumption. Every feature of these machines has been vigilantly designed to provide superior quality and performance.
They are widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc. These crushers are manufactured as per North American Design , standards and techniques at the Shenyang Plant in China...
All our product are ISO9001 Quality System and CE Certified. Our product is backed by comprehensive, worldwide after sales services and international product warranty (1year Standard Warranty while 3 years extended warranty is available (Optional)
Features:
- High quality and reliability.
- World-class craftsmanship and materials
- Modular,non welded construction (bolted type)
- Four equal size bearings that are larger than those of most crushers of comparable size
- Cast steel pitman and crusher frames
- Single-piece cast steel frame bearing housings
- Repairable crusher construction
- Soft Starting System
- Fast and sale wedge setting adjustment system
- Protection plates behind the jaw plates
- Rubber damper crusher mounting
- Versatile integral motor base
- Compact and service friendly flywheel guards
- Custom feed chute
- Automatic grease lubrication system
- Outstanding performance
- Efficient cavity designs
- Aggressive kinematics, long stroke, optimum speed
- Small allowed crusher settings
- The right jaws and cheek plates for the widest range of applications
- Used in a wide range of applications, both stationary and mobile
- Electric motor mounted on main frame-reduced vibration.
- Bolted Type Jaw design makes of each part of the main frame replaceable..
APPLICATIONS:
- Aggregate
- Mining (surface and underground)
- Recycling( concrete, asphalt ,etc)
- Industrial (slag ,anodes, etc)

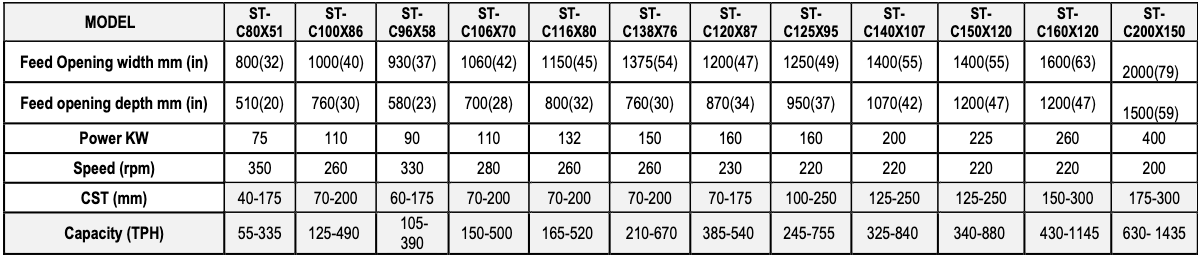

Technical Specification:
For more technical details, please download brochure

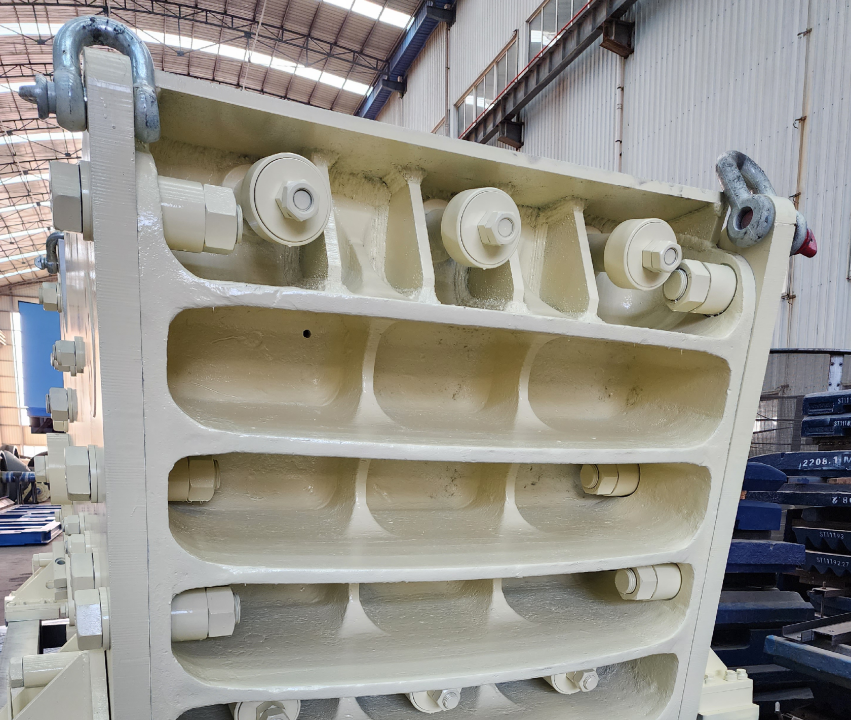

The ST- C Series jaw crushers are based on pinned and bolted, non-welded frame construction. This design principle contributes to their excellent fatigue life and strength, This, combined with high-quality steel casting design and large size spherical roller bearings, delivers the reliability that ST-C Series jaw crushers are known for.
The ST- C Serie jaw crushers are designed to handle the toughest feed materials in the primary crushing stage. They have proven their
performance in applications including mining, quarrying, recycling and industrial minerals. They have the highest power ratings in each
size class thanks to their strong pinned and bolted frame, making them ideal for stationary, underground and mobile crushing applications
For more details, please contact int-sales@comairsoll.com
