ST-SS-H/S Hydro Cone Crusher

---

The Sytechs SS-H/S Series Hydro Cone crushers are suitable for a high-capacity Secondary, Tertiary and Quaternary applications. The SS-H/S series are of Single Shaft design that is hydraulically adjustable for proper selection of the crushing chamber.

The Hydro crones can match any changes in production requirements through the selection of crushing chambers and an eccentric throw while the crusher is in working condition and by a press of bottom.. This flexibility means that it's suitable for a wide range of applications.

Features:

- High Performance & Efficiency
- Constant Feed acceptance Capability
- High output
- High quality product

Full Control of the Process

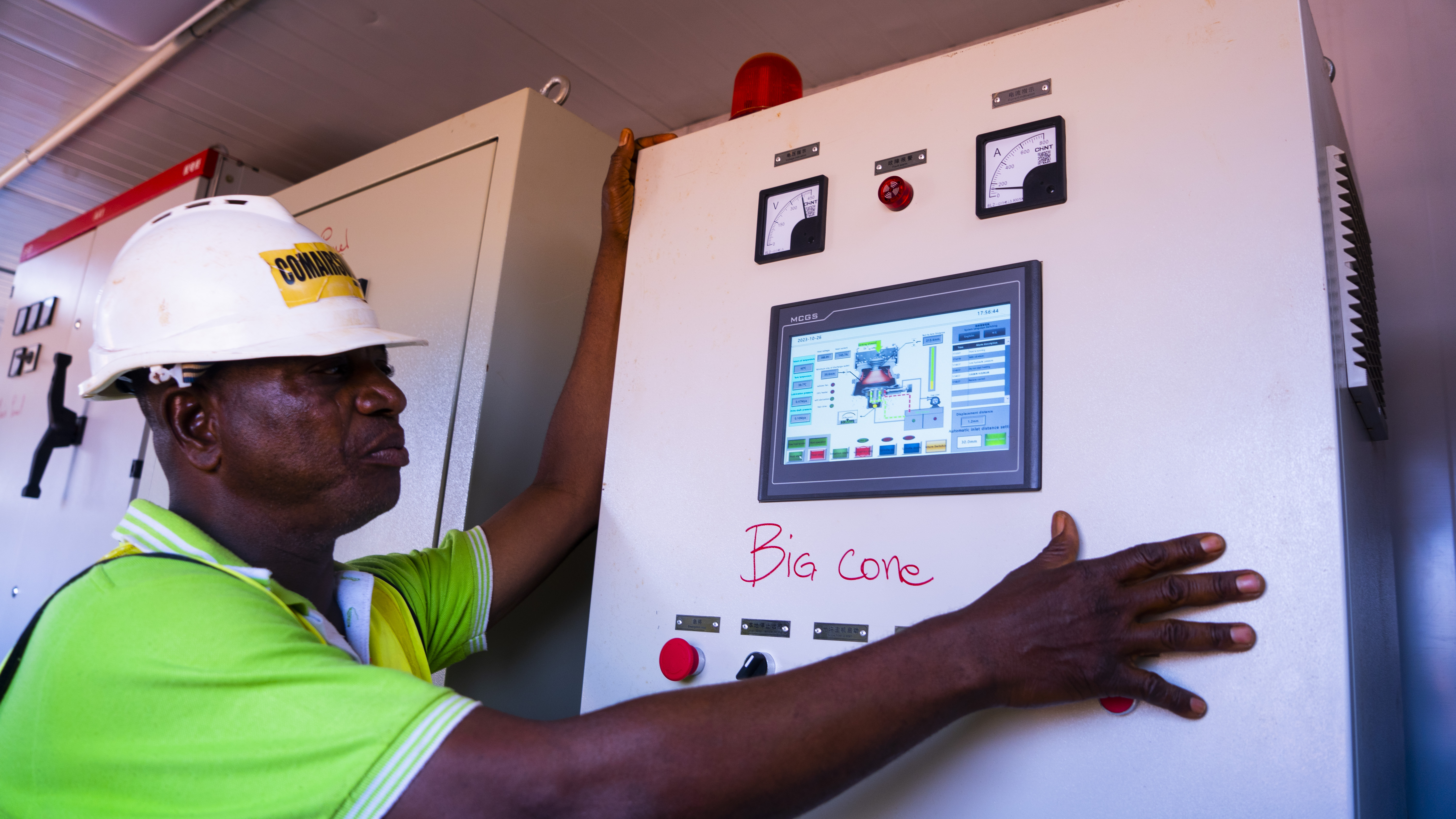

- Intelligent Control PLC
- Safety & Setting Adjustment Functions
- Heavy Duty Hydraulic Cylinder , supporting and adjusting the Main Shaft
- Automatic Overload Protection
-  Avariety of standard crushing chamber types to be chosen, which can fully meet various production requirements

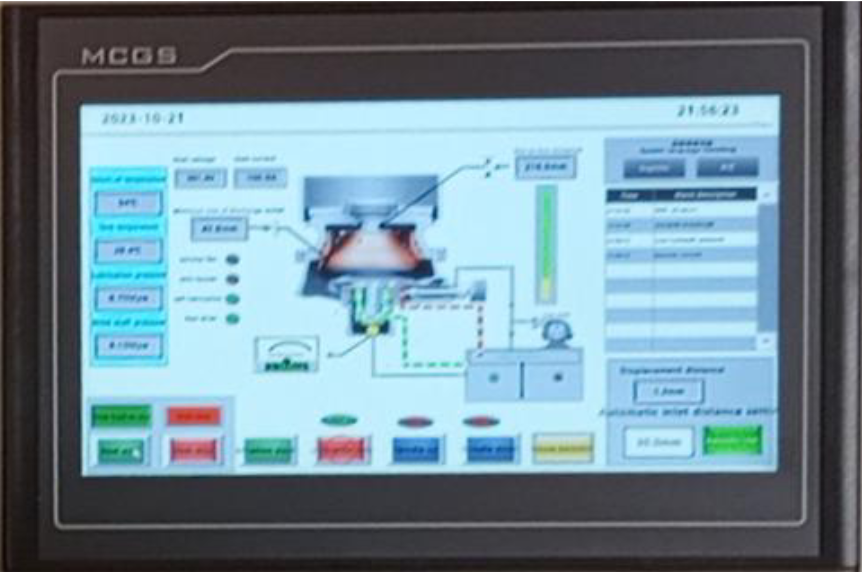

- Automatic Control System Continuous monitoring of the internal load of the crusher and automatically adjust the equipment to get the best performance.
- Guaranteed performance when original Sytechs parts are used, a long lifetime of the cone crusher is guaranteed.

Easy Handling & Maintenance

- All Servicing & Handling of the cone is done from the upper side.
- Robust & Effective Sealing against Dust

Excellent Versatility

- Easy setting adjustment to match the desired output size
- Excellent choice for Secondary, Tertiary applications.

Customers Satisfaction

- Vast Experience around the Globe
- High Efficient worldwide service & Distribution network
- Efficient, Cost Effective repair and rebuilding services.

SOFT START DRIVE (SSD) SYSTEM

he SS-H Series Cone crushers are supplied with Soft Start Drives (SSD) System which are used to limit inrush current associated with electric motor startup. Soft-start drives lower the initial voltage by adding solid-state series impedance and ramp up until full speed is achieved.
Doing this extends the life of the motor and mechanical components that are connected to it. The SSD also eliminates high inrush current on large electric motors which places a high demand (Power Surge) on the electrical supply system and often results in extra cost and larger power generators.

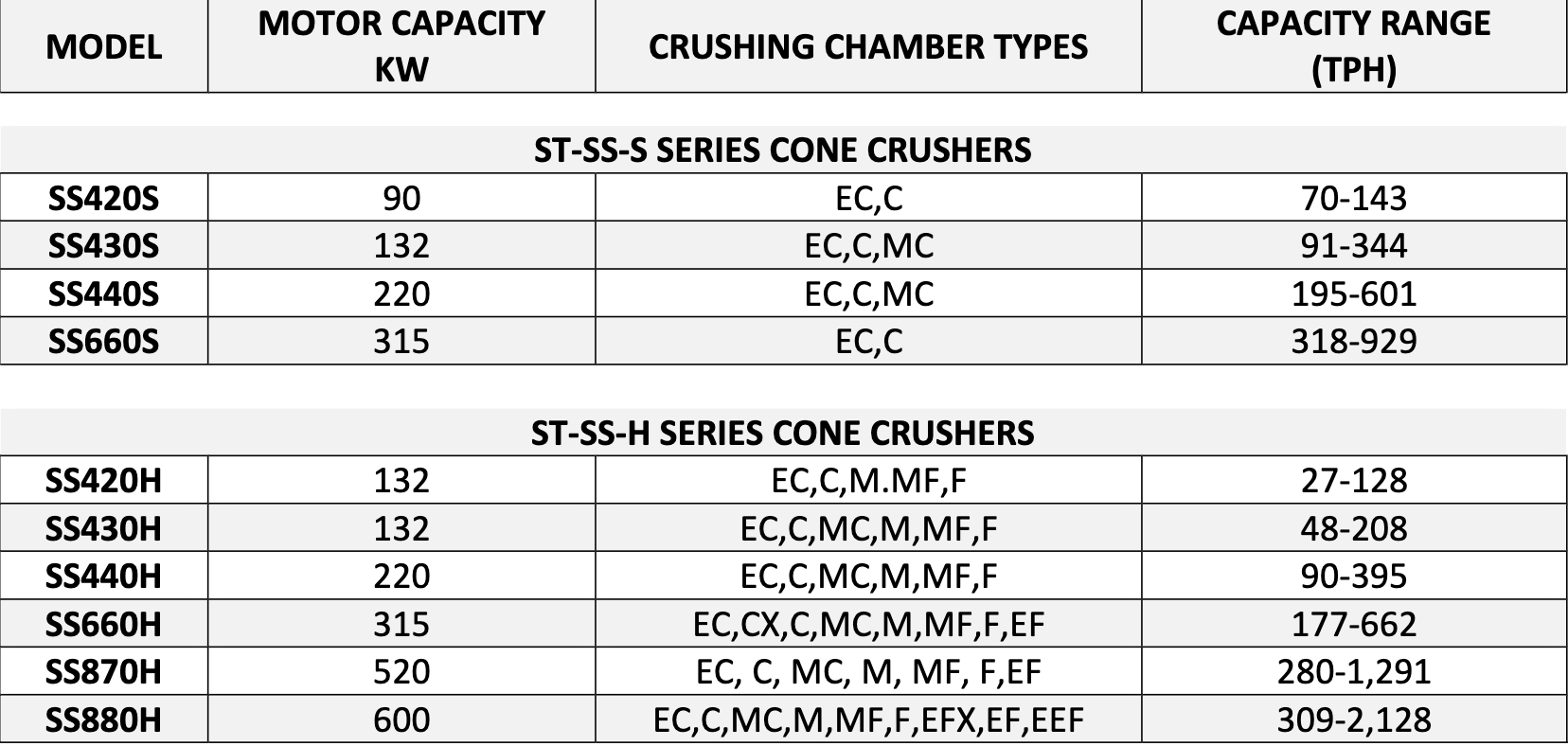

Technical Specification:

For more technical details, please download the brochure
